High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

Name: High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh
Brand: QIJIE
Price: 1 USD

Quality High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh for sale

Brand Name : QIJIE

Model Number : Steel Wire Rope Mesh

Certification : CE,SGS,ISO

Place of Origin : Hebei, China

MOQ : 10 square meters

Payment Terms : 30%TT in advance, Balance before loading

Supply Ability : 3000 m2/month

Delivery Time : 10-15 working days

Packaging Details : wooden case

Material : STAINLESS STEEL WIRE

Type : Rope Mesh, Ferrule Type or Knotted Type

Application : Protecting Mesh

Weave Style : Plain Weave

Technique : woven

Processing Service : Weave

Raw Material : Stainless Steel 304 316, Galvanized Wire

Accessories : All could be provided

Contact Now

High Quality Pool Iron Fence Mesh Flexible Stainless Steel Wire Rope Zoo Mesh Fenc USA Fencing Mesh

The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201.304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh

Buckle type

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.

Woven type

The stainless steel wire rope is woven by hand from the left to the right, which integrates the breaking force and toughness of the wire rope to the mesh surface. The whole mesh is integrated into one, which is durable, strong in corrosion resistance, beautiful and clear, and meets the use requirements of different environments. Generallyfor animal enclosures in zoo applications because it is easier to see through it when viewing the animals

model	Steel wire mesh structure	Breaking force (KN)	Wire rope diameter (mm)	Mesh size (mm)
BN32120	7*19	7.38	3.2	120*208
BN2470	7*7	4.18	2.4	70*102
BN20100	7*7	3.17	2.0	100*173
BN1680	7*7	2.17	1.6	80*140

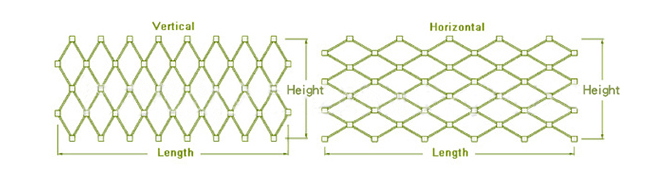

Mesh Direction

60°=stand mesn angle
90°=stand mesn angle

W=mesh aperture
H=mesh aperture height

steel wire twisted into rope It is formed by tightening a plurality of rope strands around the rope core

Installation diagram
